PLASTIC INJECTION MOULDING MACHINE FILTERS

Cooling water is a critical processing component of plastic injection moulding process. Siga Filtration can offer a range of products to remove scale and rust from recirculating cooling water used in mould tools of plastic injection moulding machines.

Recirculating cooling water accumulates corrosion products from mould and piping, contaminants from seals, sediment from makeup water, and scale due to incorrect water treatment. These contaminants can cause an uneven temperature on the mould surface and block mould cooling channels and heat exchanger tubes. Insufficient temperature control during the cooling cycle can result in inconsistent part dimensions, sink marks, poor surface finish, and warped sections. Whether you are using an open circuit cooling water system or dedicated chillers, a correctly sized filtration system will ensure efficient heat transfer, reduce cycle times, reduce rejections and keep your moulds performing at optimum levels. Please see our range of plastic injection moulding machine filters below.

1FU Single Cartridge Filter Housing (Threaded Closure)

acuraLine 1FU single cartridge filter housings are used for filtering process liquids in demanding industrial applications. These filter housings are capable of handling pressures up to 25 bar and flow rate up to 5 m3/hr. Inline connections provide easy installation.

  • Flow rate: from 0.5 to 5 m3/hr
  • Material: 304 or 316 Stainless Steel
  • No of cartridges: 1
  • Length of cartridges: 5″, 10″, 20″ or 30″
  • End cap: DOE, Code 8 or Code 3 (222)
  • Max. operating pressure: 25 bar
  • Max. operating temperature: -10/+80°C
View our Differential Pressure Measurement solutions

View Details Enquire Now

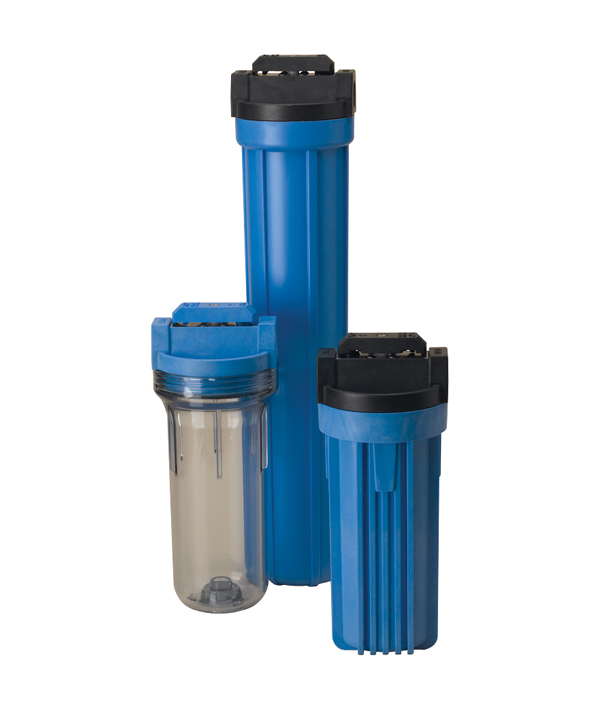

PORALine PI cartridge filter housing (NSF 42 Certified)

Single cartridge filter housing for standard (64 – 69mm OD) cartridges in lengths of 251 mm or 508 mm . Available in Polypropylene (Opaque) or styrene-acrylonitrile SAN (transparent) sump.

  • Cartridge diameter: 2 1/2″ to 2 7/8″
  • Cartridge size: 251 or 508 mm DOE or 213 internal o ring
  • Material: PP I PP/SAN
  • operating pressure: 8.5 bar
  • operating temperature: +50°C
  • NSF 42 Certified

View Details Enquire Now

PBH Bag Filter Housing for 10″ & 20″ filter bags

Molded from rugged reinforced polypropylene, PBH Bag Vessel Filter Housings offer outstanding chemical compatibility and are ideal for use in a variety of low-flow applications. These applications include residential prefiltration, food service, along with commercial and industrial applications for water filtration and chemical filtration. PBH Bag filter housing kits come complete with spanner, gauge and drain valve.

  • Lightweight corrosion resistant polypropylene construction gives you strength without weight
  • Choice of 10″ or 20″ housings
  • Available in 1″ NPT and 1-1/2″ BSP sizes
  • Come complete with gauge, wrench, and 3/8″ drain valve
  • Light enough to be portable
  • Economically priced

View Details Enquire Now

BP/BN filter bags – 10″ & 20″ bags for PBH housings

BP & BN Series Filter Bags feature a thermally-welded, unique design that results in consistent filtration efficiencies. They are designed to fit the PBH-410 and PBH-420 Housings. Higher productivity can be achieved with faster bag change-outs. The semi-rigid cylindrical design is easily crushed and incinerated. BP Series (Polypropylene Felt) Filtration ratings from 1 to 200 microns to comply with any filtration requirement. Manufactured from felt due to its high solids loading capabilities versus similar mesh fabrics.  A glazed finish, created by melting the outermost surface fibers, is used to produce a bond that reduces the possibility of migration.  BN Series (Strainer) Woven monofilment materials are offered in nylon with micron ratings of 50 to 800. Efficiencies from 75 to 95%. Materials are cleanable and reusable.  View PBH bag housings for BP/BN filter bags View the complete range of filter bags View the complete range of food and beverage filters

View Details Enquire Now

BFOS Bag Filter Housing (Size 1 or 2)

acuraLine BFOS Bag Filter Housings combine high flow rate capabilities with industrial strength. These highly flexible units can be used with a range of 7” diameter filter bags for fine filtration or with a mesh lined basket for coarse/straining applications. Optional magnet assemblies provide reliable removal of rust particles. Manufactured from 304 Stainless Steel (optional 316SS), these industrial units come as standard with strong hinged lid closure for extra strength and durability. BFOS bag filter housings come complete with a bag locking plate, mesh basket and adjustable legs.

  • Water, paints, oils and chemicals
  • Free flowing design
  • Flow rate: from 5 to 45 m3/hr
  • Material: 304 or 316 Stainless Steel
  • Bag size: 1 (7″ x 16″) or 2 (7″ x 32″)
  • Max. operating pressure: 10 bar
  • Max. operating temperature: -10/+80°C
View our Differential Pressure Measurement solutions

View Details Enquire Now

acuraBag® – Standard filter bags with plastic collar

acuraBag Filter Bags offer a cost effective solution for high flow rate filtration. Available in a range of micron ratings and industry standard sizes 1, 2, 3 & 4 (4" & 7" diameter), all acuraBag filter bags are Silicone free, come with integrated handles for easy removal and supplied individually wrapped to avoid contamination. Polyester felt material is ideal for high temperature applications. acuraBag filter bags can be used for the filtration of water, waste water, oil, cutting fluids, paints, inks, acids, food oils & beverages. All seams are welded (felt bags only) and the bags are supplied with our positive sealing bypass free (polypropylene or polyester) collars. View complete range of filter bags   View complete range of bag filter housings

View Details Enquire Now
