Simplex & Duplex Basket Strainers
Industrial basket strainers are used for removing particulates from process and recirculating water. These are usually installed on incoming water supply to protect downstream components like valves, pumps and heat exchangers. Our simplex basket strainers come with removable and cleanable baskets. These can be supplied with inline connections for quick and easy installation. Duplex basket strainers operate in duty/standby arrangement, the flow can be easily diverted to the clean unit with a switchover valve, allowing for continuous operation. Our simplex and duplex basket strainers are available in cast iron, rubber lined carbon steel, and stainless steel in a range of micron ratings. Basket material is stainless steel. In addition, we can supply a differential pressure indicator to indicate a blocked filter complete with a single or double contact for external alarm signal.
-

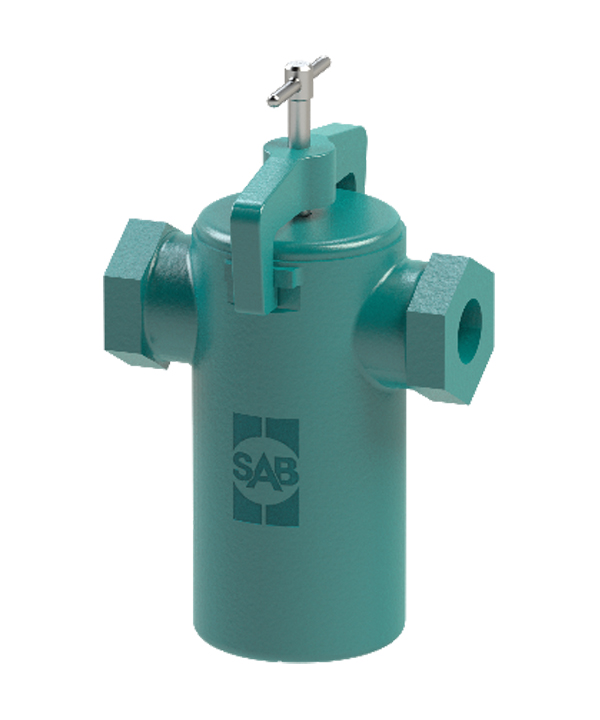

F119 MINI Simplex Basket Filter, cast iron (1/2″ – 2″ Thread)
Compact cast iron basket filter with threaded connections. Suitable for protection of pumps, valves, heat exchangers and removal of sediment from water. F119 simplex basket strainers are used for low flow rate industrial applications, flow capability from 1.1 – 18 m3/h. These units combine economy with durability and come with stainless steel baskets in […]
-

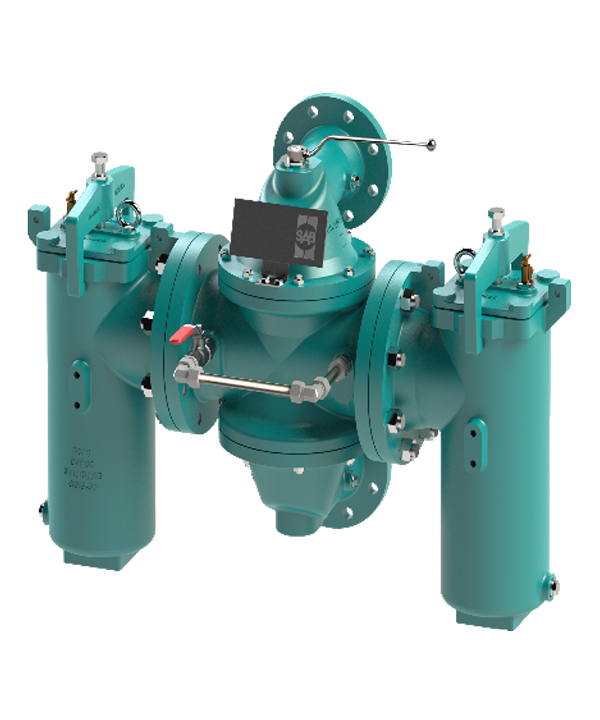

F311 Duplex Basket Filter, cast iron (DN65 – DN300)
High flow rate solution. Suitable for protection of pumps, valves, heat exchangers and removal of sediment from water. F311/F311S duplex strainers are used for high flow rate industrial applications, flow capability from 30 – 635 m3/h. These units combine economy with durability and come with stainless steel baskets in a range of micron ratings. […]
-

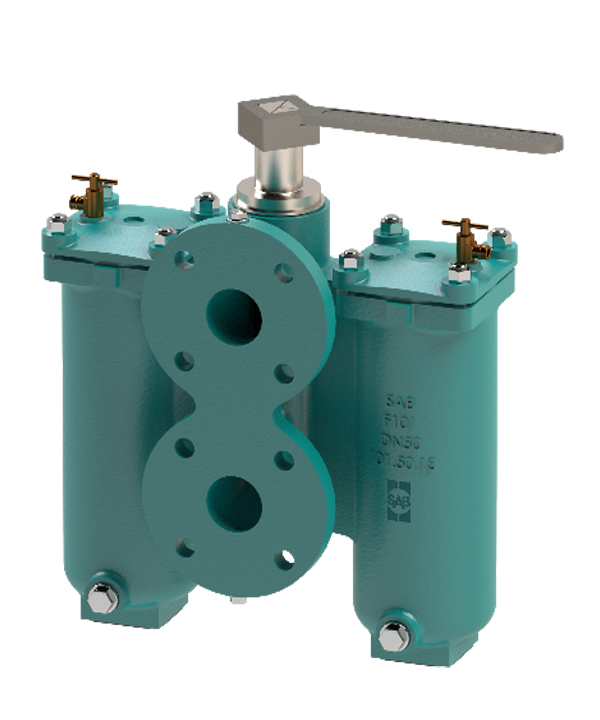

F101 MINI Duplex Basket Strainer, cast iron (1/2″ – 2″ flange)
Compact units. Suitable for protection of pumps, valves, heat exchangers and removal of sediment from water. Compact duplex basket strainers in cast iron. Flow capability 3 – 18 m3/h. Connections 1/2″ to 2″ flanges. Micron rating 20 – 3000 micron. 10 bar rated. These basket strainers are supplied in duty/standby arrangement for uninterrupted operation. Flow […]
-
F105 Simplex Basket Strainer, SS (1/2″ – 12″ flanged)
These stainless steel high pressure simplex basket strainers were developed for gases, liquids and viscous media and can be designed for up to 64 bar operating pressure. These strainers can be used in a wide range of applications and have many different design possibilities. F105B version can be supplied with inline connections. Available in flanged […]
-

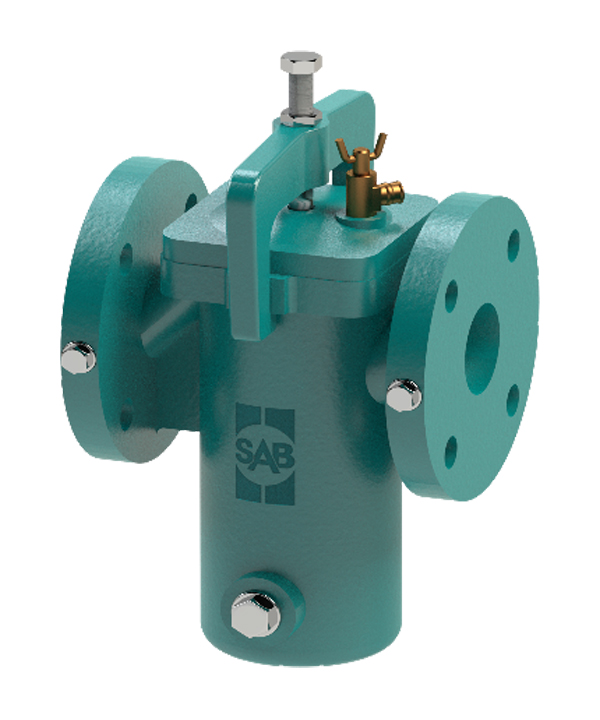

F118/F118S Simplex Basket Strainer, Cast iron (1″ – 12″ flanged)
F118/F118S basket strainers are available with inline connections from DN25 – DN300 and pressure ratings of 6, 10 or 16 bar depending on closure choice. All F118/F118S simplex basket strainers are supplied in cast iron (GGG-50) with powder coating for corrosion resistance. Mesh baskets are available in Carbon Steel or Stainless Steel and micron ratings […]
-

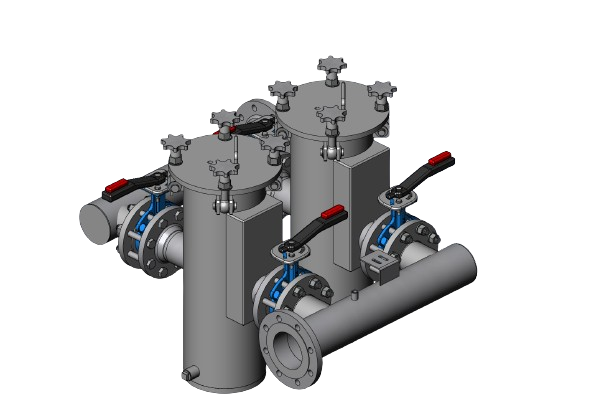

SF-IL Inline Basket Filter – Stainless Steel (1″ – 8″)
Stainless steel inline baskets filters for pump & valve protection and removal of particles during tank, and IBC transfers. Flow rate capability from 4 to 280 m3/hr. These filters come with a removable and cleanable stainless steel mesh lined basket. Available micron ratings 25 – 2000 micron (Other micron ratings available on request). Freestanding units […]
