1FU Single Cartridge Filter Housing (Threaded Closure)

acuraLine 1FU single cartridge filter housings are used for filtering process liquids in demanding industrial applications. These filter housings are capable of handling pressures up to 25 bar and flow rate up to 5 m3/hr. Inline connections provide easy installation.

• Flow rate: from 0.5 to 5 m3/hr
• Material: 304 or 316 Stainless Steel
• No of cartridges: 1
• Length of cartridges: 5″, 10″, 20″ or 30″
• End cap: DOE, Code 8 or Code 3 (222)
• Max. operating pressure: 25 bar
• Max. operating temperature: -10/+80°C

acuraMultiflow PP Depth Filter Cartridge

acuraMultiflow is a nominal meltbolown depth filter cartridge which provides exceptional performance in clarification and prefiltration applications. These cartridges work by trapping a wide range of particle sizes throughout the fibre matrix. 100% Polypropylene construction provides excellent thermal and chemical resistance, making acuraMultiflow filter cartridges ideal for use in water and chemicals. These filters are also suitable for food contact and can be used in food & beverage applications.  View range of cartridge filter housings Absolute removal required? See acuraPromelt.

BFOS Bag Filter Housing (Size 1 or 2)

acuraLine BFOS Bag Filter Housings combine high flow rate capabilities with industrial strength. These highly flexible units can be used with a range of 7” diameter filter bags for fine filtration or with a mesh lined basket for coarse/straining applications. Optional magnet assemblies provide reliable removal of rust particles. Manufactured from 304 Stainless Steel (optional 316SS), these industrial units come as standard with strong hinged lid closure for extra strength and durability. BFOS bag filter housings come complete with a bag locking plate, mesh basket and adjustable legs.

• Water, paints, oils and chemicals
• Free flowing design
• Flow rate: from 5 to 45 m3/hr
• Material: 304 or 316 Stainless Steel
• Bag size: 1 (7″ x 16″) or 2 (7″ x 32″)
• Max. operating pressure: 10 bar
• Max. operating temperature: -10/+80°C

ALSI Bag Housing for Size 3 & 4 (4″ Dia) Filter Bags

acuraLine ALSI Series Bag Filter Housings are compact industrial units designed for prefiltration or non-critical applications. Manufactured from 304 (optional 316) Stainless Steel, ALSI bag filter housings feature a quick release triclamp closure (optional bolted closure) and come complete with a bag locking plate and perforated Stainless Steel basket.

• Water, paints, oils, fuels and chemicals
• Free-flowing design
• Flow rate: from 1 to 15 m3/hr
• Material: 304 or 316 Stainless Steel
• Bag size: 3 (4″ x 8.8″) or 4 (4″ x 15″)
• Max. operating pressure: 10 bar (16 bar with bolted closure)
• Max. operating temperature: -10/+80°C

2BFOS2 Duplex Bag Filter Housings (Duty/Standby)

2 x BFOS2 bag filter housings in duty/standby arrangement complete with switch over valves. This unit eliminates process disruption due to filter maintenance. Filtration can be easily switched to standby unit with valves.

• Duplex unit in duty/standby arrangement
• Supplied fully assembled for easy installation
• 3″ or 4″ PN16 flanged connections
• Optional differential pressure gauge

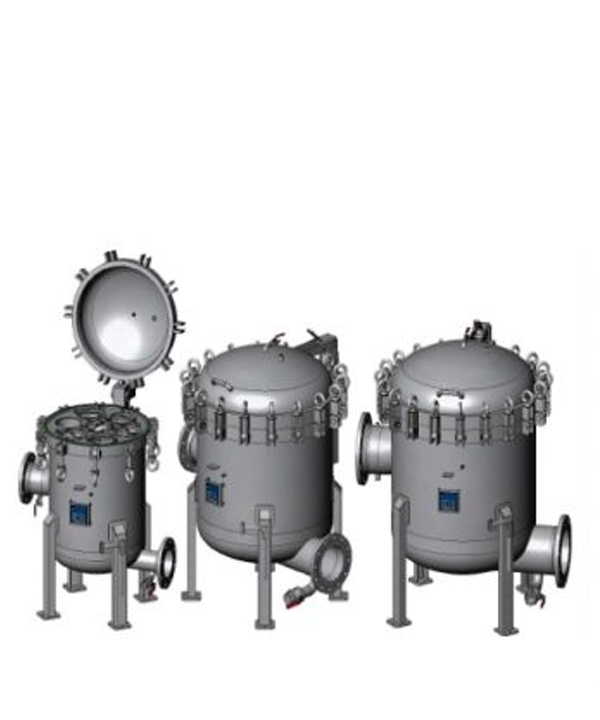

Multi Bag Filter Housing – 4, 6, 8 & 12 filter bags

acuraLine multi bag filter housings are capable of handling high flow rates in demanding industrial applications. These Stainless Steel units are supplied with a spring assisted hinged lid and swing bolts. New acuraLock lid locking mechanism for operator safety.

• High flow rate up to 300 m3/hr
• 4, 6, 8 and 12 bags
• Stainless steel construction
• Optional magnetic filtration and DP gauge

acuraBag® – Standard filter bags with plastic collar

acuraBag Filter Bags offer a cost effective solution for high flow rate filtration. Available in a range of micron ratings and industry standard sizes 1, 2, 3 & 4 (4" & 7" diameter), all acuraBag filter bags are Silicone free, come with integrated handles for easy removal and supplied individually wrapped to avoid contamination. Polyester felt material is ideal for high temperature applications. acuraBag filter bags can be used for the filtration of water, waste water, oil, cutting fluids, paints, inks, acids, food oils & beverages. All seams are welded (felt bags only) and the bags are supplied with our positive sealing bypass free (polypropylene or polyester) collars. View complete range of filter bags   View complete range of bag filter housings

acuraBag XL – Extended life filter bag

Our extended life filter bags feature a dual layer media for longer service life and better particle retention. acuraBag XL filter bags are available in bag size 1 & 2 (7" diameter) in Polypropylene or Polyester felt material. The unique filter media of extended life filter bags increases the filter life by 2 -4 times and reduces consumable and maintenance costs. These filter bags can be installed in all industry standard size 1 and 2 bag filter housings. Thermally welded seams provide bypass free filtration. The acuraBag XL extended life filter bags come with integrated handles for easy removal from filter housing.  View complete range of filter bags View complete range of bag filter housings

SF-IL Inline Basket Filter – Stainless Steel

Stainless steel inline baskets filters for pump & valve protection and removal of particles during tank, and IBC transfers. Flow rate capability from 4 to 280 m3/hr. These filters come with a removable and cleanable stainless steel mesh lined basket. Available micron ratings 25 - 2000 micron. Freestanding units with a flat base and bolted lid. SF-IL basket filters can be supplied with a fully assembled dp gauge to indicate a blocked filter. Also available in duplex (duty/standby) arrangement. View our Differential Pressure Measurement solutions View our complete range of Basket Filters

F118/F118S Simplex Basket Strainer, Cast iron (1" - 12" flanged)

F118/F118S basket strainers are available with inline connections from DN25 – DN300 and pressure ratings of 6, 10 or 16 bar depending on closure choice. All F118/F118S simplex basket strainers are supplied in cast iron (GGG-50) with powder coating for corrosion resistance. Mesh baskets are available in Carbon Steel or Stainless Steel and micron ratings from 20 – 3000 micron.  These basket strainers provide a cost-effective solution for coarse filtration and feature inline design for ease of installation. See our complete range of simplex and duplex basket strainers.

2-SF-IL Duplex basket filters, Stainless Steel (1" - 8" flanged)

High flow rate industrial units with removable baskets in a range of mesh sizes. Ideal for coarse or prefiltration applications. SF-IL basket filters feature high flow rate capability (4m3/hr to 300 m3/hr) and come with flanged connections as standard. Inline design allows easy installation and minimises site modifications. All acuraLine housings can be supplied fully assembled with optional DP gauge to indicate blocked filter. Also available in duplex arrangement, complete with valves. View our Differential Pressure Measurement solutions
