CNC machine coolant filtration

Machine coolants not only provide efficient heat transfer but also remove chips from work surfaces and prevent the tools from re-cutting or welding on to materials or chips.  Filtration of machine coolant can reduce wear by removing chips from coolant, provide efficient heat transfer, reduce the risk of tooling fracture and increase tool life.



Benefits of filtering CNC coolant:

Filtration of CNC coolant can

  • Longer coolant and machine life
  • Less equipment down time
  • Improved production rate
  • Reduced rejections and defective parts
  • Improved surface finish
  • Longer tool life
  • Reduced consumables costs
  • Reduced coolant disposal costs
  • Avoid rough cuts
  • Discourage bacterial growth

A correctly sized filter for CNC coolant should:

  • Provide low clean pressure drop to avoid slowing down coolant flow rate
  • Remove chips of all sizes and shapes throughout the depth of the cartridge
  • Compatible with the coolant (should not swell or break down in the coolant)
  • Provide reasonable life to avoid frequent change outs and down time

PBH Plastic bag housing

  • Economical filtration solution
  • Polypropylene construction
  • Supplied as a complete kit with spanner, drain valve and gauge
  • 10″ & 20″ felt or mesh bags

Inline 1FU Cartridge Filter Housing

  • Inline design for easy installation
  • Removal of dirt and chips from cutting fluid
  • Industrial grade 304 Stainless Steel construction
  • Coolant compatible materials – 304SS and Viton
  • High pressure rating – up to 25 bar
  • Operating temperature – up to 80°C
  • Threaded or optional clamped closure
  • 1” BSPF connections
  • Available in 5”, 10”, 20” & 30” lengths
  • Optional DP Gauge to indicate cartridge change-out

acuraMultiflow Filter Cartridges

  • Remove large chips and small particles down to 0.5 micron
  • Reduce component wear
  • High efficiency filtration, significantly more efficient than strainers.
  • High dirt holding capacity
  • Coolant compatible PP material
  • No additives or binders
  • Rigid structure to withstand hydraulic shock and eliminate particle unloading.
  • Easy removal from filter housing.

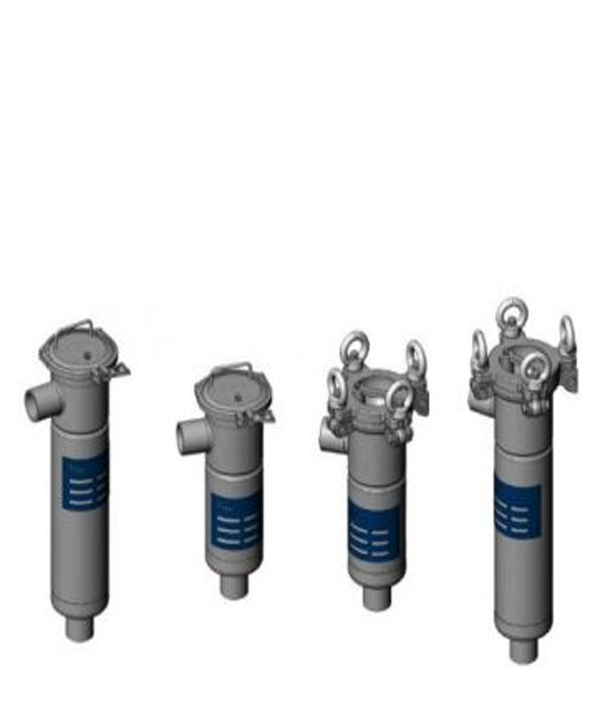

ALSI Compact Bag Filter Housing

  • Space saving compact design
  • Industrial grade 304 Stainless Steel construction
  • Coolant compatible materials – 304SS and Viton
  • Pressure rating – up to 10 bar
  • Operating temperature – up to 90°C
  • 1 ½” BSPF connections
  • Quick release clamped closure (bolted closure available)
  • Available in bag sizes 3 (4” x 9”) & 4 (4” x 14”)
  • Optional DP Gauge to indicate filter change-out

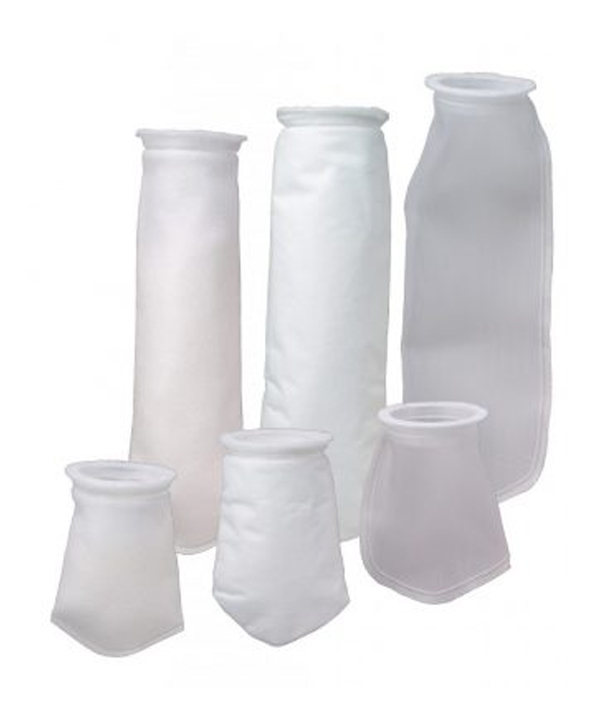

acuraBag Filter Bags

  • Remove large chips and small particles down to 0.5 micron
  • High flow rate & long service life
  • High dirt holding capacity
  • Reduce operating costs
  • Available in Polypropylene & Polyester
  • Chemical compatibility
  • Strong welded construction to withstand damage from chips

Filtration ratings down to 1 micron to suit all types of finishing requirements
