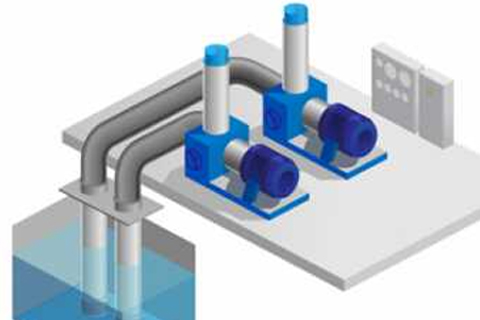

COOLING WATER
Water is one of the most economical heat transfer mediums and is widely used across the industry for cooling applications.
Cooling water is often surface water which comes with a high concentration of particulates and needs treatment before it can be used for cooling. Siga Filtration can offer inline basket filters or self-cleaning filters for heavily contaminated once-through systems. Our downstream filtration solutions can reduce the particulate size down to 1 micron if required. Particulates in water can deposit on heat transfer surfaces, block heat exchangers and lead to equipment failure.
Compact SS housing, 1" connections. Water, chemicals, CNC, inks, paints, coatings, fine particulate removal.
acuraLine 1FU single cartridge filter housings are constructed from stainless steel and come with a threaded closure. These are compact units with inline connections for easy installation, suitable for a single cartridge of 5", 10", 20" or 30" length. 1FU housings can be supplied with a fully assembled DP gauge for reliable indication of blocked filter element. An operating pressure of 25 bar, flow capability of 6 m3/h and inline connections for easy installation, make this housing a practical choice for industrial applications. See datasheet for range of useful accessories for this housing. Use with removable and cleanable acuraScreen Stainless Steel Element Use with disposable acuraMultiflow Polypropylene spun element for fine particulate removal View our differential pressure measurement solutions View Details Enquire Now
acuraMultiflow is a nominal meltbolown depth filter cartridge which provides exceptional performance in clarification and prefiltration applications. These cartridges work by trapping a wide range of particle sizes throughout the fibre matrix. 100% Polypropylene construction provides excellent thermal and chemical resistance, making acuraMultiflow filter cartridges ideal for use in water and chemicals. These filters are also suitable for food contact and can be used in food & beverage applications. View range of cartridge filter housings Absolute removal required? See acuraPromelt.
View Details Enquire Now
Size 1 or Size 2 bag housing for 7" collar or ring style filter bags for industrial water, paints, chemicals, oils, inks and coatings.
acuraLine BFOS Bag Filter Housings combine high flow rate capabilities with industrial strength. These highly flexible units can be used with a range of 7” diameter filter bags for fine filtration or with a mesh lined basket for coarse/straining applications. Optional magnet assemblies provide reliable removal of rust particles. Manufactured from 304 Stainless Steel (optional 316SS), these industrial units come as standard with strong hinged lid closure for extra strength and durability. BFOS bag filter housings come complete with a bag locking plate, mesh basket and adjustable legs.- Water, paints, oils and chemicals
- Free flowing design
- Flow rate: from 5 to 45 m3/hr
- Material: 304 or 316 Stainless Steel
- Bag size: 1 (7″ x 16″) or 2 (7″ x 32″)
- Max. operating pressure: 10 bar
- Max. operating temperature: -10/+80°C
acuraLine ALSI Series Bag Filter Housings are compact industrial units designed for prefiltration or non-critical applications. Manufactured from 304 (optional 316) Stainless Steel, ALSI bag filter housings feature a quick release triclamp closure (optional bolted closure) and come complete with a bag locking plate and perforated Stainless Steel basket.
- Water, paints, oils, fuels and chemicals
- Free-flowing design
- Flow rate: from 1 to 15 m3/hr
- Material: 304 or 316 Stainless Steel
- Bag size: 3 (4″ x 8.8″) or 4 (4″ x 15″)
- Max. operating pressure: 10 bar (16 bar with bolted closure)
- Max. operating temperature: -10/+80°C
2 x BFOS2 bag filter housings in duty/standby arrangement complete with switch over valves. This unit eliminates process disruption due to filter maintenance. Filtration can be easily switched to standby unit with valves.
- Duplex unit in duty/standby arrangement
- Supplied fully assembled for easy installation
- 3″ or 4″ PN16 flanged connections
- Optional differential pressure gauge
acuraLine multi bag filter housings are capable of handling high flow rates in demanding industrial applications. These Stainless Steel units are supplied with a spring assisted hinged lid and swing bolts. New acuraLock lid locking mechanism for operator safety.
- High flow rate up to 300 m3/hr
- 4, 6, 8 and 12 bags
- Stainless steel construction
- Optional magnetic filtration and DP gauge
acuraBag Filter Bags offer a cost effective solution for high flow rate filtration. Available in a range of micron ratings and industry standard sizes 1, 2, 3 & 4 (4" & 7" diameter), all acuraBag filter bags are Silicone free, come with integrated handles for easy removal and supplied individually wrapped to avoid contamination. Polyester felt material is ideal for high temperature applications. acuraBag filter bags can be used for the filtration of water, waste water, oil, cutting fluids, paints, inks, acids, food oils & beverages. All seams are welded (felt bags only) and the bags are supplied with our positive sealing bypass free (polypropylene or polyester) collars. View complete range of filter bags View complete range of bag filter housings
View Details Enquire Now Our extended life filter bags feature a dual layer media for longer service life and better particle retention. acuraBag XL filter bags are available in bag size 1 & 2 (7" diameter) in Polypropylene or Polyester felt material. The unique filter media of extended life filter bags increases the filter life by 2 -4 times and reduces consumable and maintenance costs. These filter bags can be installed in all industry standard size 1 and 2 bag filter housings. Thermally welded seams provide bypass free filtration. The acuraBag XL extended life filter bags come with integrated handles for easy removal from filter housing. View complete range of filter bags View complete range of bag filter housings
View Details Enquire Now
FWK multi-cartridge filter housings feature an industrial-grade Stainless Steel construction and bolted closure. These rugged units provide reliable performance in tough operating conditions. FWK multi-cartridge filter housings can be supplied for 5 or 7 filter elements in lengths of up to 40" and provide a high flow rate filtration solution. Suitable for single open end and double open elements. View complete range of cartridge filter housings View complete range of filter cartridges View our Differential Pressure Measurement solutions
View Details Enquire Now acuraMultiflow is a nominal meltbolown depth filter cartridge which provides exceptional performance in clarification and prefiltration applications. These cartridges work by trapping a wide range of particle sizes throughout the fibre matrix. 100% Polypropylene construction provides excellent thermal and chemical resistance, making acuraMultiflow filter cartridges ideal for use in water and chemicals. These filters are also suitable for food contact and can be used in food & beverage applications. View range of cartridge filter housings Absolute removal required? See acuraPromelt.
View Details Enquire Now
Stainless steel inline baskets filters for pump & valve protection and removal of particles during tank, and IBC transfers. Flow rate capability from 4 to 280 m3/hr. These filters come with a removable and cleanable stainless steel mesh lined basket. Available micron ratings 25 - 2000 micron (Other micron ratings available on request). Freestanding units with a flat base and bolted lid. SF-IL basket filters can be supplied with a fully assembled dp gauge to indicate a blocked filter. Also available in duplex (duty/standby) arrangement. View our Differential Pressure Measurement solutions View our complete range of Basket Filters
View Details Enquire Now
F118/F118S basket strainers are available with inline connections from DN25 – DN300 and pressure ratings of 6, 10 or 16 bar depending on closure choice. All F118/F118S simplex basket strainers are supplied in cast iron (GGG-50) with powder coating for corrosion resistance. Mesh baskets are available in Carbon Steel or Stainless Steel and micron ratings from 20 – 3000 micron (Other micron ratings available on request). These basket strainers provide a cost-effective solution for coarse filtration and feature inline design for ease of installation. See our complete range of simplex and duplex basket strainers.
View Details Enquire Now
These stainless steel high pressure simplex basket strainers were developed for gases, liquids and viscous media and can be designed for up to 64 bar operating pressure. These strainers can be used in a wide range of applications and have many different design possibilities. F105B version can be supplied with inline connections. Available in flanged connections from DN15 – DN300 and basket mesh sizes from 10 – 3000 micron. Flow rate capability 1.5 – 610 m3/h. See our complete range of simplex and duplex basket strainers.
View Details Enquire Now
Compact units. Suitable for protection of pumps, valves, heat exchangers and removal of sediment from water.
Compact duplex basket strainers in cast iron. Flow capability 3 - 18 m3/h. Connections 1/2" to 2" flanges. Micron rating 20 - 3000 micron. 10 bar rated. These basket strainers are supplied in duty/standby arrangement for uninterrupted operation. Flow can be switched by using a lever, allowing for easy maintenance. F101 duplex basket strainers are supplied in cast iron (GG-25) with anti corrosion coating. These duplex basket strainers can be used to filter coarse and fine particles. The most remarkable features of this filter are its high efficiency, low weight, low space requirements, quick and easy cleaning, as well as continuous filter operation during the cleaning phase. Optional dp indicator and remote alarm. See our complete range of simplex and duplex basket strainers. View Details Enquire Now
KSF-240K self-cleaning filters feature a compact design and inline connections for easy installation. The unit comes with a clamped closure for quick disassembly. Particles are removed by a continuously rotating scraper and carried away from the filter by a manual or automatic purge.
View Details Enquire Now
Low maintenance, easy to operate, continuous cleaning with KSF Series self-cleaning filters. Flow capability up to 35 m3/h. These self-cleaning filters come with a top mounted electric motor which continuously rotates a scraper on the surface of an internal wedge wire element to remove dirt. This eliminates the need for backwashing and makes these filters easy to use and maintain. An advantage of using wedge wire elements is that the V shaped profile avoids blockage by particulates. A manual drain valve can be used to remove the dirt from the vessel at regular intervals. Alternatively, an optional pneumatically operated valve with timer can be used to remove dirt automatically at timed intervals.
