PAINT FILTRATION

Contaminated paint can cause craters, uneven coating and clogged spray nozzles. Paint skin (formed during storage) and coagulated pigments are gelatinous in nature which can deform during filtration and pass through the filter, our CLARISpun classification elements provide a depth of regular pore size to remove these impurities without removing dispersed pigments.  CLARIBag filter bags and metal mesh elements can be used for general particulate and dirt removal. All products are supplied Silicone-free.

Our filters can be used to remove

Coagulated pigments
Paint skin
Gels
Dirt particles, fibers
Contaminants added during paint handling and transfers

BFOS Bag Filter Housing (Size 1 or 2)

acuraLine BFOS Bag Filter Housings combine high flow rate capabilities with industrial strength. These highly flexible units can be used with a range of 7” diameter filter bags for fine filtration or with a mesh lined basket for coarse/straining applications. Optional magnet assemblies provide reliable removal of rust particles. Manufactured from 304 Stainless Steel (optional 316SS), these industrial units come as standard with strong hinged lid closure for extra strength and durability. BFOS bag filter housings come complete with a bag locking plate, mesh basket and adjustable legs.

  • Water, paints, oils and chemicals
  • Free flowing design
  • Flow rate: from 5 to 30 m3/hr
  • Material: 304 or 316 Stainless Steel
  • Bag size: 1 (7″ x 16″) or 2 (7″ x 32″)
  • Max. operating pressure: 10 bar
  • Max. operating temperature: -10/+80°C
View our Differential Pressure Measurement solutions

View Details Enquire Now

acuraBag® – Standard filter bags with plastic collar

acuraBag Filter Bags offer a cost effective solution for high flow rate filtration. Available in a range of micron ratings and industry standard sizes 1, 2, 3 & 4 (4" & 7" diameter), all acuraBag filter bags are Silicone free, come with integrated handles for easy removal and supplied individually wrapped to avoid contamination. Polyester felt material is ideal for high temperature applications. acuraBag filter bags can be used for the filtration of water, waste water, oil, cutting fluids, paints, inks, acids, food oils & beverages. All seams are welded (felt bags only) and the bags are supplied with our positive sealing bypass free (polypropylene or polyester) collars. View complete range of filter bags   View complete range of bag filter housings

View Details Enquire Now

acuraBag XL – Extended life filter bag

Our extended life filter bags feature a dual layer media for longer service life and better particle retention. acuraBag XL filter bags are available in bag size 1 & 2 (7" diameter) in Polypropylene or Polyester felt material. The unique filter media of extended life filter bags increases the filter life by 2 -4 times and reduces consumable and maintenance costs. These filter bags can be installed in all industry standard size 1 and 2 bag filter housings. Thermally welded seams provide bypass free filtration. The acuraBag XL extended life filter bags come with integrated handles for easy removal from filter housing.  View complete range of filter bags View complete range of bag filter housings

View Details Enquire Now

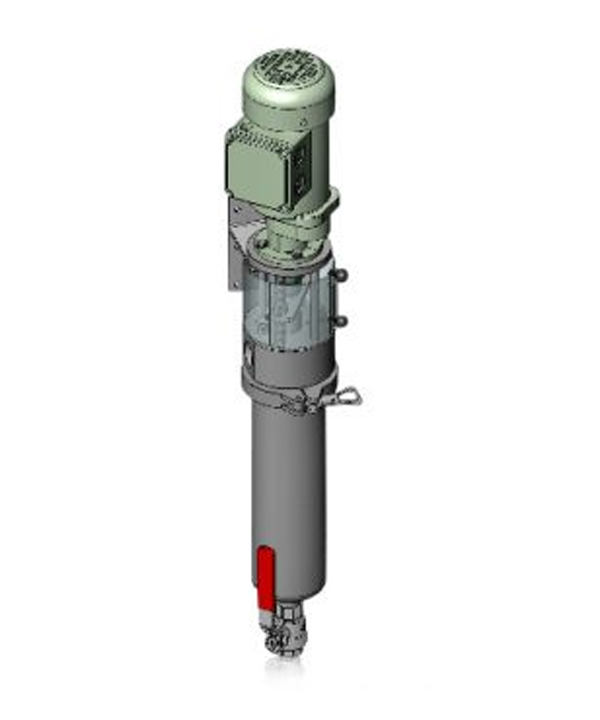

Self cleaning wedge wire filter KSF-240K

KSF-240K self-cleaning filters feature a compact design and inline connections for easy installation. The unit comes with a clamped closure for quick disassembly. Particles are removed by a continuously rotating scraper and carried away from the filter by a manual or automatic purge.

View Details Enquire Now

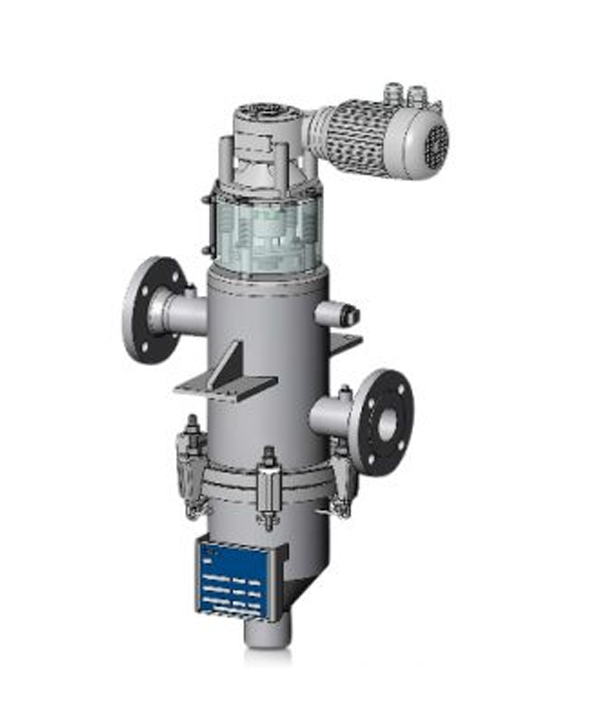

Self cleaning wedge wire filter KSF-400 / 700 / 1000

Low maintenance, easy to operate, continuous cleaning with KSF Series self-cleaning filters. Flow capability up to 35 m3/h. These self-cleaning filters come with a top mounted electric motor which continuously rotates a scraper on the surface of an internal wedge wire element to remove dirt. This eliminates the need for backwashing and makes these filters easy to use and maintain. An advantage of using wedge wire elements is that the V shaped profile avoids blockage by particulates. A manual drain valve can be used to remove the dirt from the vessel at regular intervals. Alternatively, an optional pneumatically operated valve with timer can be used to remove dirt automatically at timed intervals.

View Details Enquire Now

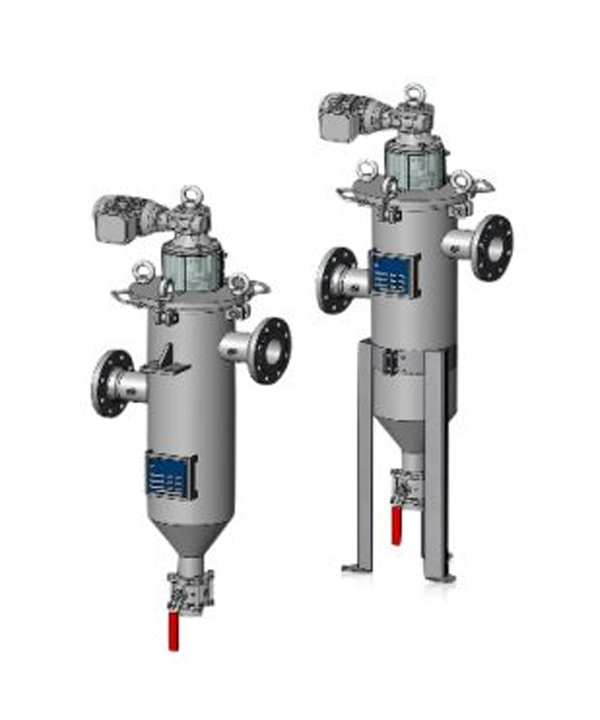

Self cleaning wedge wire filter KSF-TL - Food & beverage

Easily Removable motor lid assembly with flushing point for cleaning in food applications. Flow rate capability up to 35 m3/h. Low maintenance, easy to operate, and continuous cleaning.   KSF –TL self-cleaning filters come with a removable motor, lid, and scraper assembly which makes it easy to clean, sanitise or replace wedge wire elements. This is also useful for food or batch applications where the unit must be cleaned after each batch. In addition, a flushing port is provided to clean the assembly in situ. Top mounted electric motor continuously rotates a scraper on the surface of an internal wedge wire element to remove dirt. This eliminates the need for backwashing and makes these filters easy to use and maintain. A manual drain valve can be used to remove the dirt from the vessel at regular intervals. Alternatively, an optional pneumatically operated valve with a timer can be used to remove dirt automatically at timed intervals.

View Details Enquire Now
