Fuel Polishing Filters for Diesel & Biodiesel

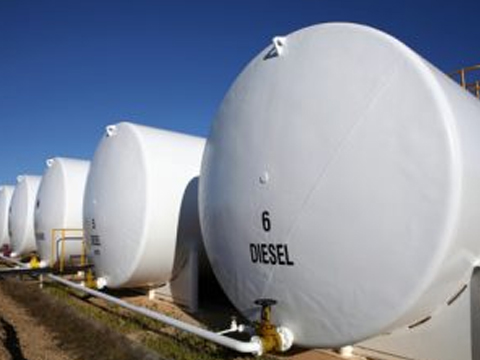

As diesel gets older a fine sediment and gum forms in the diesel brought about by the reaction of diesel components with oxygen from the air. The fine sediment and gum will block fuel filters, leading to fuel starvation and engine stopping.
Frequent filter changes are then required to keep the engine going. The gums and sediment do not burn in the engine very well and can lead to carbon and soot deposits on injectors and other combustion surfaces.
The presence of water allows for growth of fungus and bacteria, these produce natural by-products such as organic acids which make the fuel unstable. This problem is compounded in biodiesel which is more hygroscopic (water absorbing) as compared to Diesel.
Establishing a system for filtering the contents of the main storage tank through a recirculating filter system can keep contaminant build up in check. This can be made automatic and will reduce the potential for problems by removing sediment and gums. The filters should be changed and checked at regular intervals.
Bag Filter Housings for Diesel & Biodiesel Filtration
Siga Filtration can supply bag filter housings in the following configuration for effective filtration of diesel and biodiesel.
- ➤ Single bag filter housings
- ➤ Duplex bag filter housings in duty/standby arrangement (for uninterrupted flow)
- ➤ 3 x Bag filter housings in series for staged filtration e.g. 100 micron followed by 50 micron followed by 5 or 1 micron filtration
- ➤ Mobile filter skids with castors or fork lift channels for ease of installation
ALSI Bag Housing for Size 3 & 4 (4″ Dia) Filter Bags
acuraLine ALSI Series Bag Filter Housings are compact industrial units designed for prefiltration or non-critical applications. Manufactured from 304 (optional 316) Stainless Steel, ALSI bag filter housings feature a quick release triclamp closure (optional bolted closure) and come complete with a bag locking plate and perforated Stainless Steel basket.
- Water, paints, oils, fuels and chemicals
- Free-flowing design
- Flow rate: from 1 to 15 m3/hr
- Material: 304 or 316 Stainless Steel
- Bag size: 3 (4″ x 8.8″) or 4 (4″ x 15″)
- Max. operating pressure: 10 bar (16 bar with bolted closure)
- Max. operating temperature: -10/+80°C
BFOS Bag Filter Housing (Size 1 or 2)
acuraLine BFOS Bag Filter Housings combine high flow rate capabilities with industrial strength. These highly flexible units can be used with a range of 7” diameter filter bags for fine filtration or with a mesh lined basket for coarse/straining applications. Optional magnet assemblies provide reliable removal of rust particles. Manufactured from 304 Stainless Steel (optional 316SS), these industrial units come as standard with strong hinged lid closure for extra strength and durability. BFOS bag filter housings come complete with a bag locking plate, mesh basket and adjustable legs.
- Water, paints, oils and chemicals
- Free flowing design
- Flow rate: from 5 to 45 m3/hr
- Material: 304 or 316 Stainless Steel
- Bag size: 1 (7″ x 16″) or 2 (7″ x 32″)
- Max. operating pressure: 10 bar
- Max. operating temperature: -10/+80°C
acuraBag® – Standard filter bags with plastic collar
acuraBag Filter Bags offer a cost effective solution for high flow rate filtration. Available in a range of micron ratings and industry standard sizes 1, 2, 3 & 4 (4" & 7" diameter), all acuraBag filter bags are Silicone free, come with integrated handles for easy removal and supplied individually wrapped to avoid contamination. Polyester felt material is ideal for high temperature applications. acuraBag filter bags can be used for the filtration of water, waste water, oil, cutting fluids, paints, inks, acids, food oils & beverages. All seams are welded (felt bags only) and the bags are supplied with our positive sealing bypass free (polypropylene or polyester) collars. View complete range of filter bags View complete range of bag filter housings
View Details Enquire Now

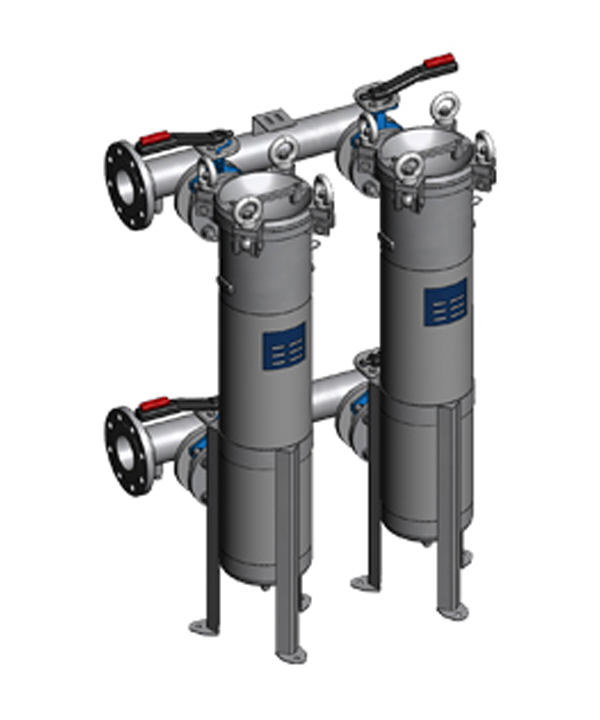

2BFOS2 Duplex Bag Filter Housings (Duty/Standby)
2 x BFOS2 bag filter housings in duty/standby arrangement complete with switch over valves. This unit eliminates process disruption due to filter maintenance. Filtration can be easily switched to standby unit with valves.
- Duplex unit in duty/standby arrangement
- Supplied fully assembled for easy installation
- 3″ or 4″ PN16 flanged connections
- Optional differential pressure gauge
acuraBag® – Standard filter bags with plastic collar
acuraBag Filter Bags offer a cost effective solution for high flow rate filtration. Available in a range of micron ratings and industry standard sizes 1, 2, 3 & 4 (4" & 7" diameter), all acuraBag filter bags are Silicone free, come with integrated handles for easy removal and supplied individually wrapped to avoid contamination. Polyester felt material is ideal for high temperature applications. acuraBag filter bags can be used for the filtration of water, waste water, oil, cutting fluids, paints, inks, acids, food oils & beverages. All seams are welded (felt bags only) and the bags are supplied with our positive sealing bypass free (polypropylene or polyester) collars. View complete range of filter bags View complete range of bag filter housings
